Service

Reverse engineering

A go to supplier for customers who want to re-create a component in composite. Often these are older parts where no moulds exist but a new piece is required.

01 Scan

The original part is captured as a point cloud on our 3D scanner, so no drawings are needed. Damaged and distorted areas are recorded exactly as they are, then worked out at the model stage.

Scan data of a composite component as a point cloud
01 Scan
CAD model built from 3D scan data
02 Model
CAD section showing tooling for the finished component
03 Make

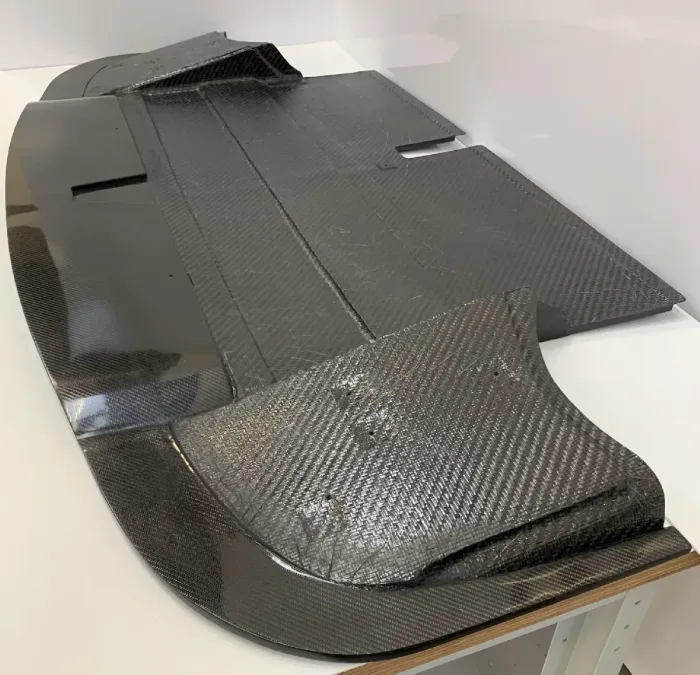

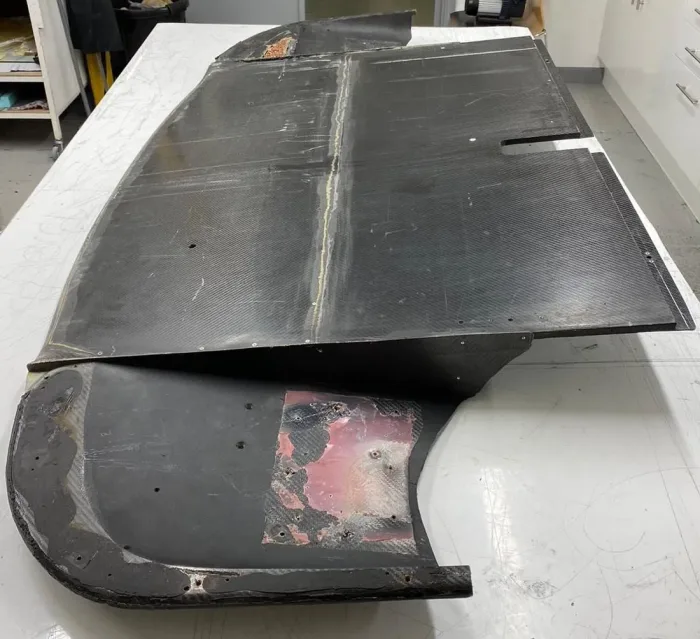

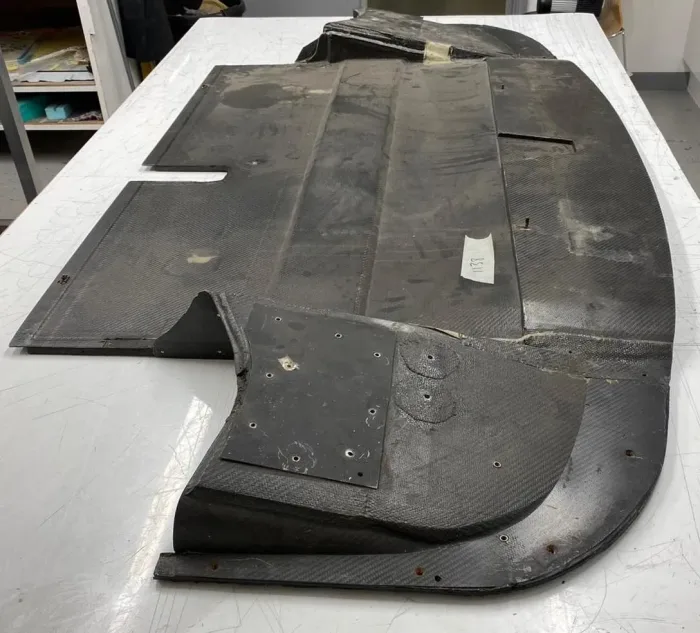

Parts rebuilt from scan data.

All of your composite needs, under one roof.

Carbon fibre components produced at AGN Composites Component production Composite mould tooling made at AGN Composites Mould making CNC machined pattern in epoxy tooling block Pattern making Carbon fibre panel under repair at AGN Composites Carbon fibre repair Component prepared for 3D scanning and CAD build Reverse engineering

Need us for a project?
